Model Mee-3 RO Combo Rack
Reverse Osmosis and Fog Pump Combination Skid

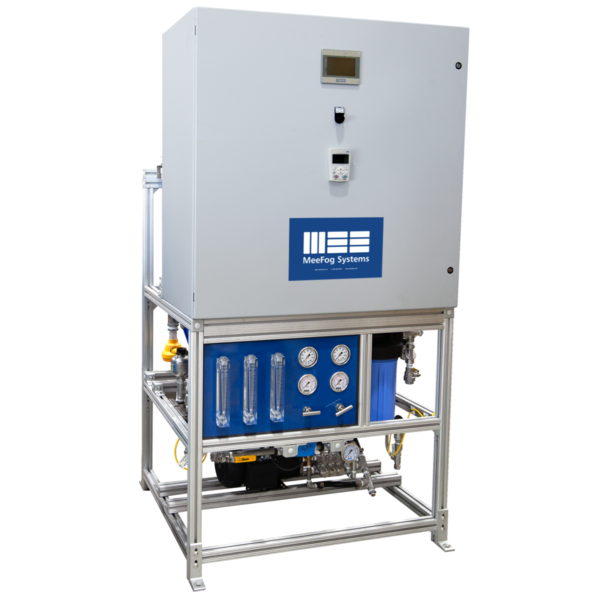

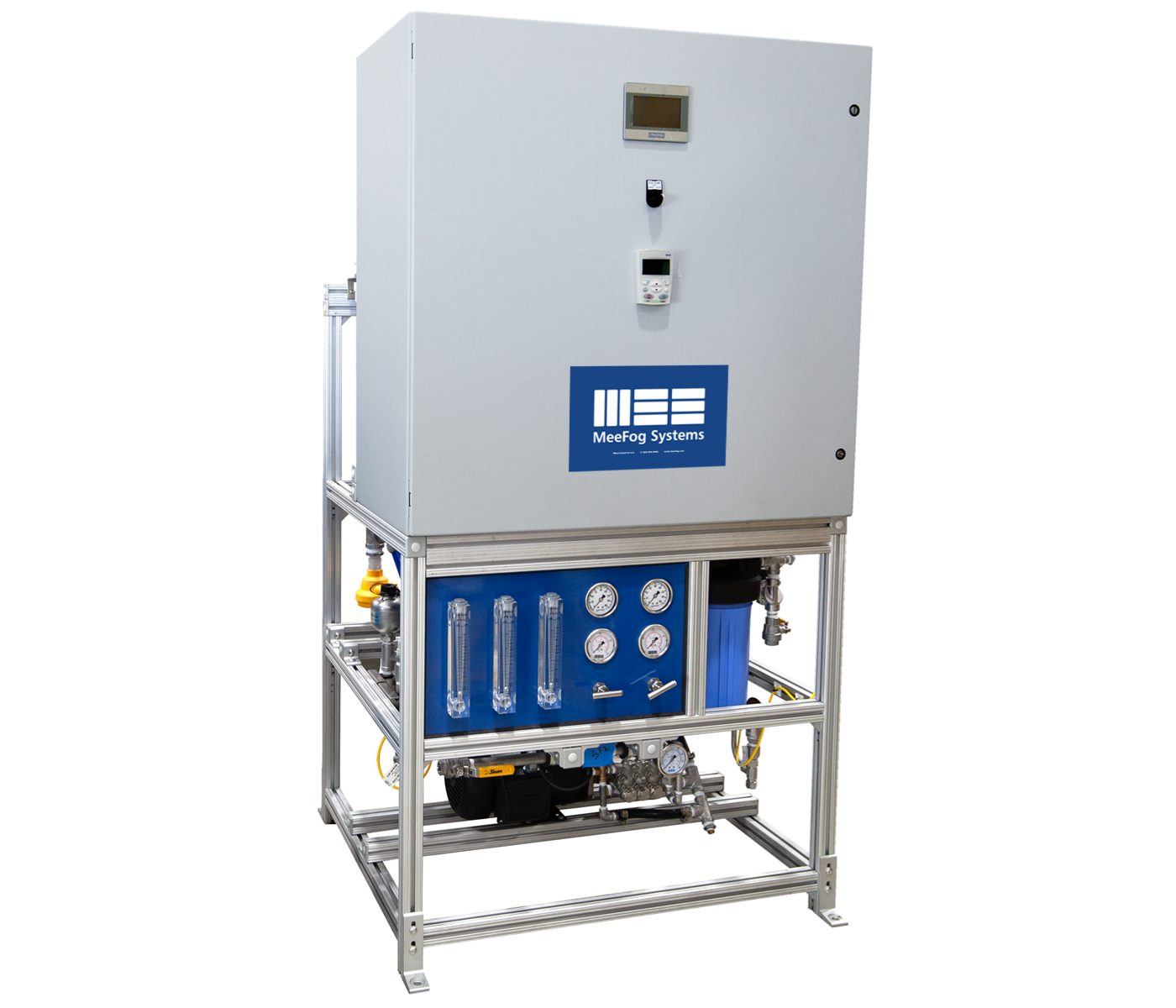

The Mee-3 RO Combo Pump Unit is an integrated industrial system that combines a high-pressure fogging pump with a Reverse Osmosis (RO) water treatment system on a single skid. All of the features of a Model Mee-3 Fog pump unit combined with a Reverse Osmosis water treatment system. This unit produces atomized water efficiently, making it well-suited for applications that require reliable and energy-efficient humidification.
Overview:
- Direct drive stainless-steel fog pumps with high-efficiency motors.
- PLC, VFD, pre-treatment carbon filter and dual-tank water softener, post-treatment UV filter.
- Low Inlet-pressure and high discharge pressure protection.
What it Does:
The RO system purifies the feed water (through softening, carbon filtration, and RO) and stores it in a pressurized tank. Then the fog pump re-pressurizes the water to 1000 psi and sends it to the fog nozzle grid in the air handling unit where the purified water is atomized and evaporated into the air stream.
Features
Specifications
Other
Features
- Anodized aluminum frame ensures long, corrosion free service.

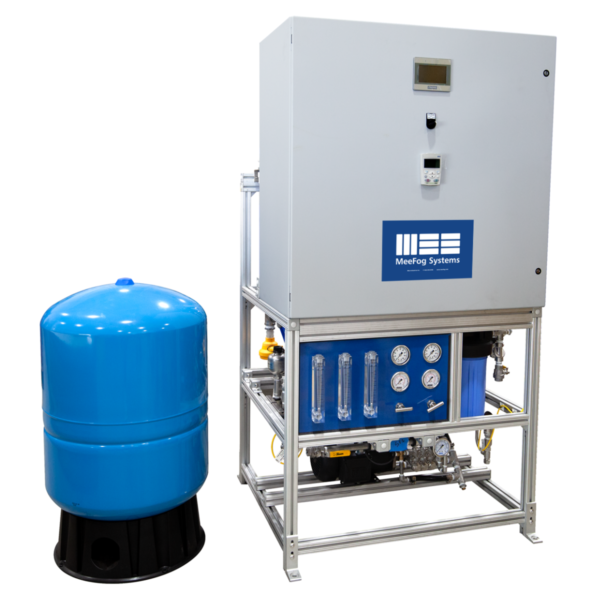

- Water storage buffer tank.
-
PLC cabinet with a display and controller.
-
VFD with panel-mounted controller.
- UL certified (508A enclosed industrial control panels).
Specifications
| Model Mee-3 | Design Flow (gpm) | Design Flow (lbs/hr) | Max Flow | Min. Flow (gpm) | Dimensions (W” x H” x D”) | Weight (lbs.) | Bladder Tank Size / Weight (W” x H” x D”) | Motor HP | Customer Connections (Inlet/Outlet) |
|---|---|---|---|---|---|---|---|---|---|
| Mee3RO-SSG110 | 0.9 | 450 | 1.1 | 0.04 | 36 x 68.5 x 34 | 329 | 22 x 36 x 22 / 44 gal /400 lbs. | 1 | 3/8" NPT |
| Mee3RO-SSC360 | 2.4 | 1,200 | 3 | 0.07 | 36 x 68.5 x 34 | 329 | 26 x 55 x 26 / 44 gal / 800 lbs. Wet | 3 | 1/2" NPT |
Other
Water filtered through Reverse Osmosis (RO) is recommended for all MeeFog systems. Removing minerals and dissolved solids from supply water will achieve the highest purity of water and reduce routine maintenance.
