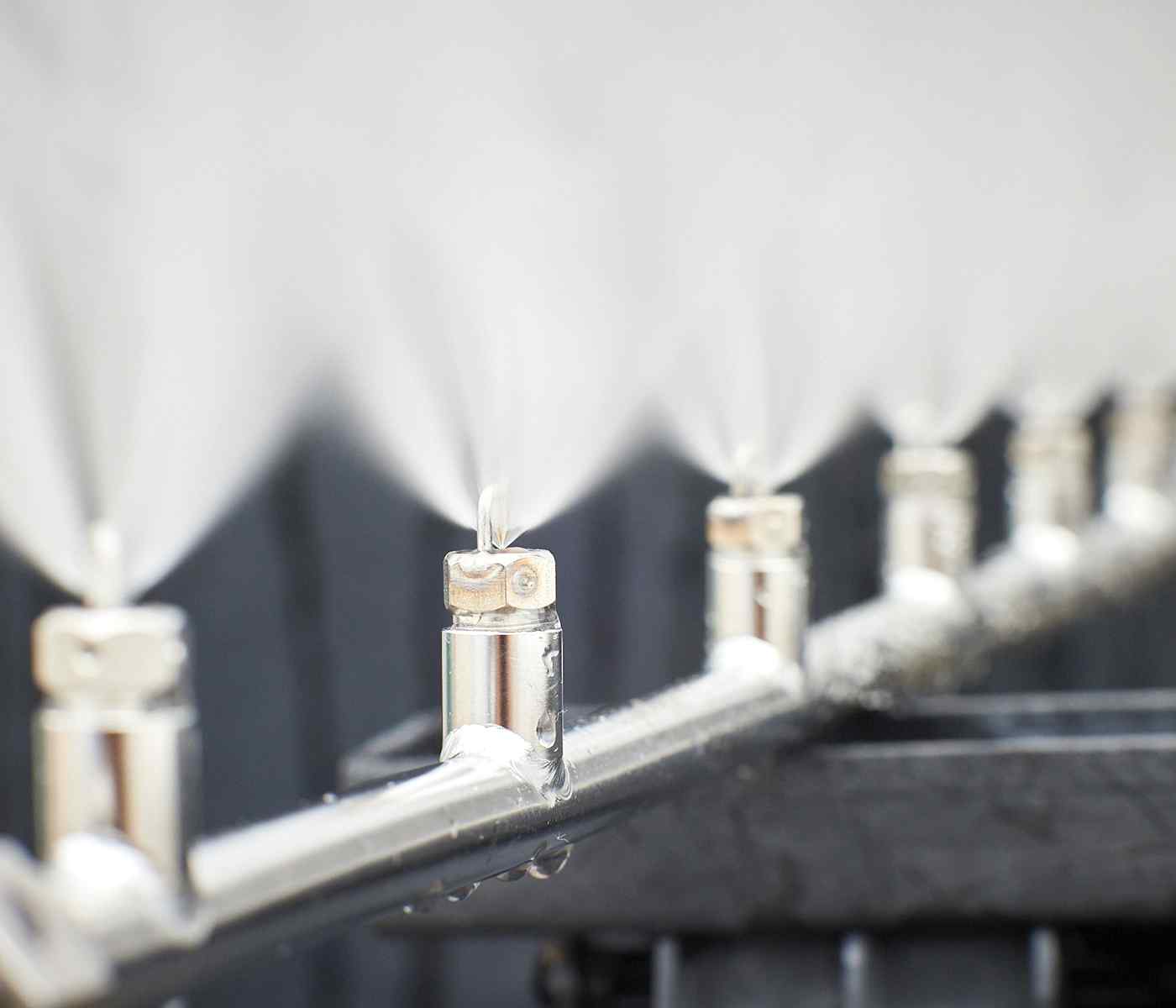

A close-up of metal misting nozzles spraying fine water droplets, creating a cooling effect in a bright, out-of-focus background.

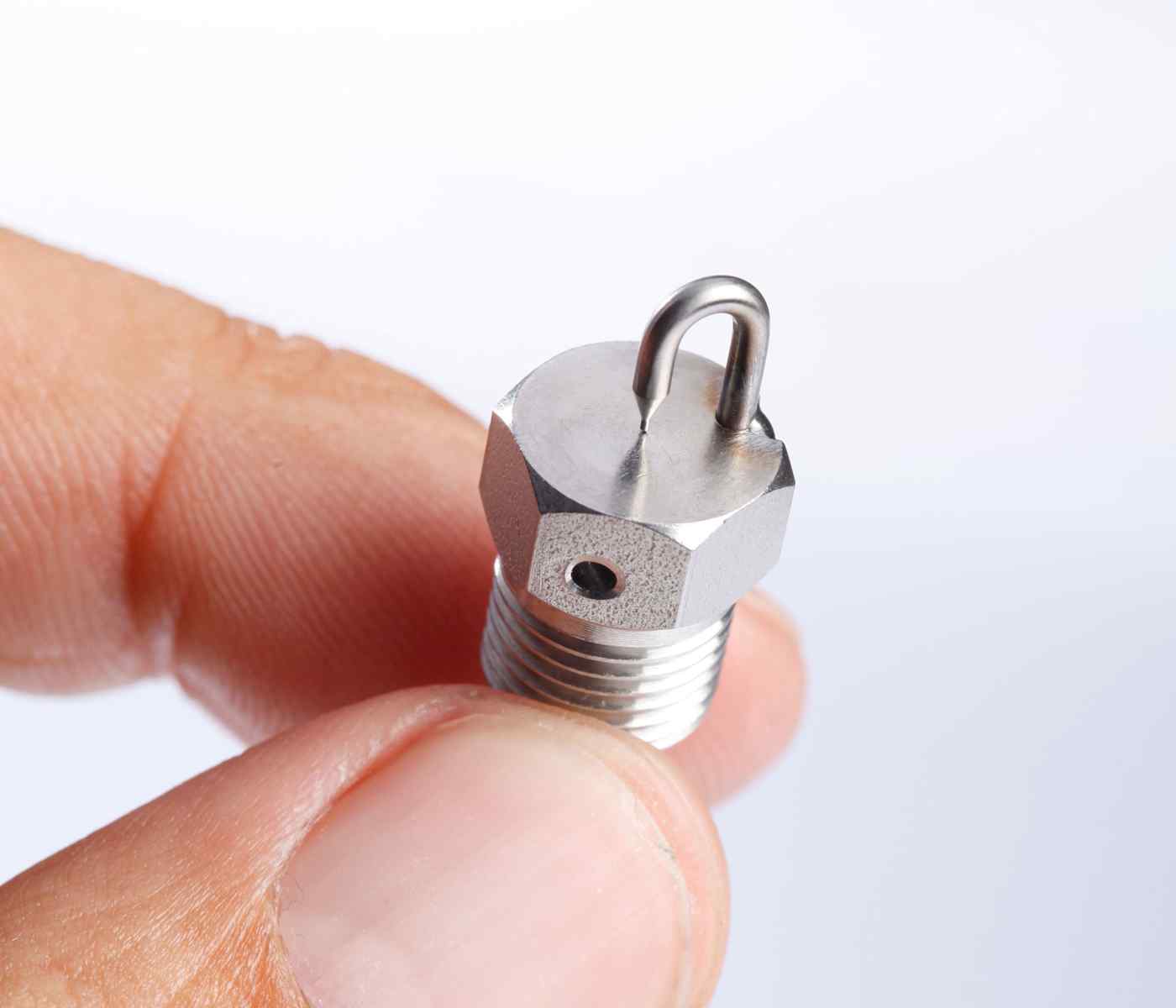

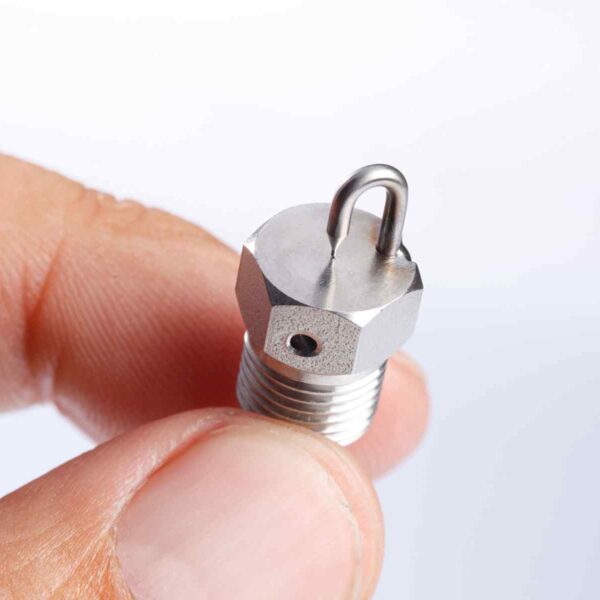

Close-up of a person's finger holding a metallic nozzle, showcasing its threaded base and a bent tip for fluid delivery.

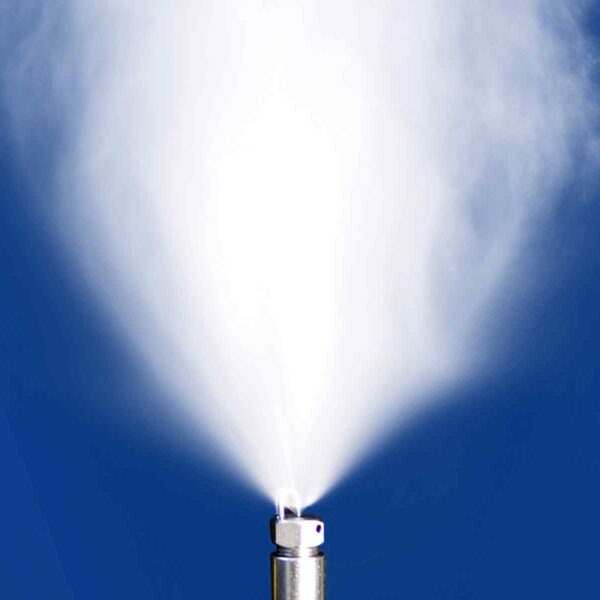

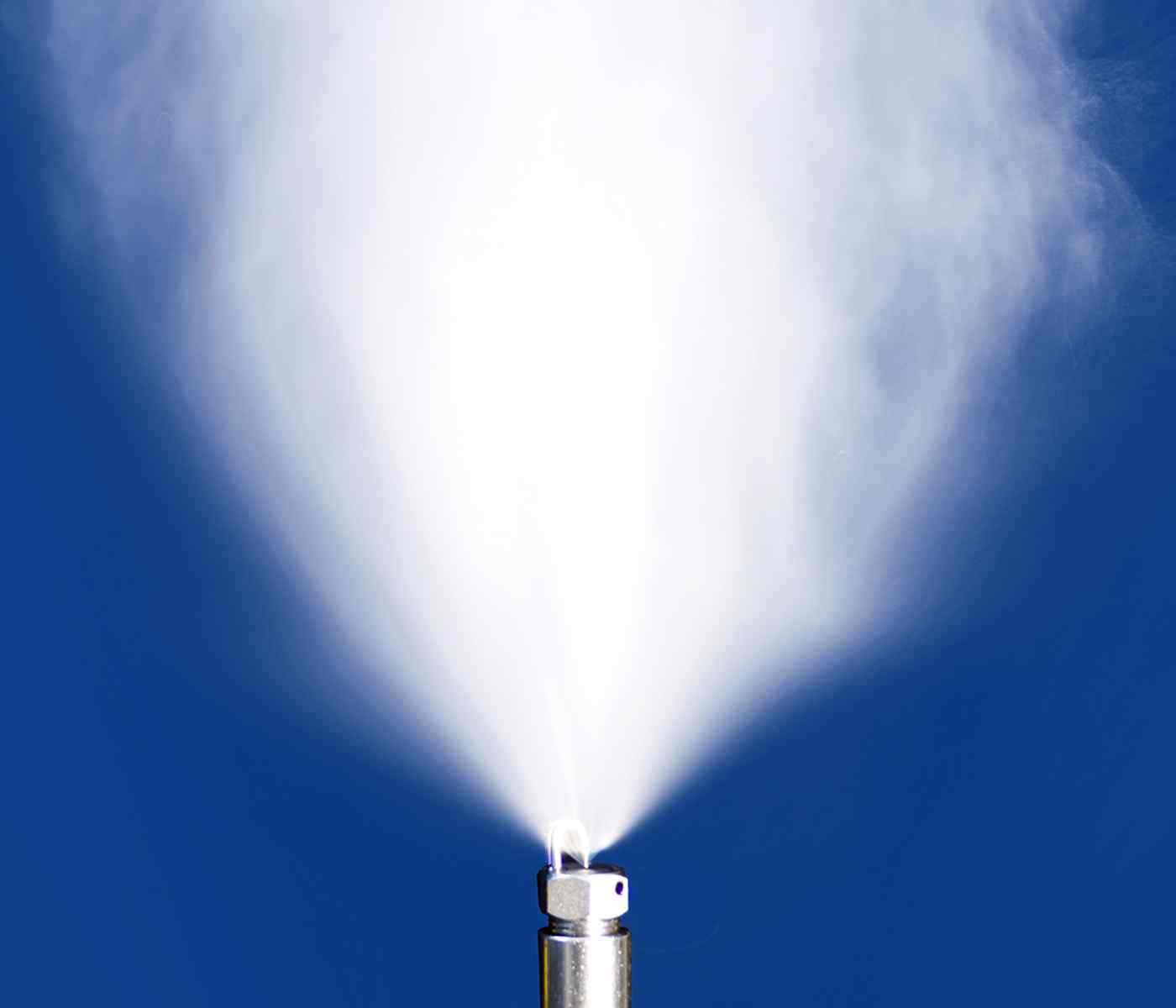

Close-up of a nozzle emitting a fine mist against a bright blue background, creating a cloud-like spray.

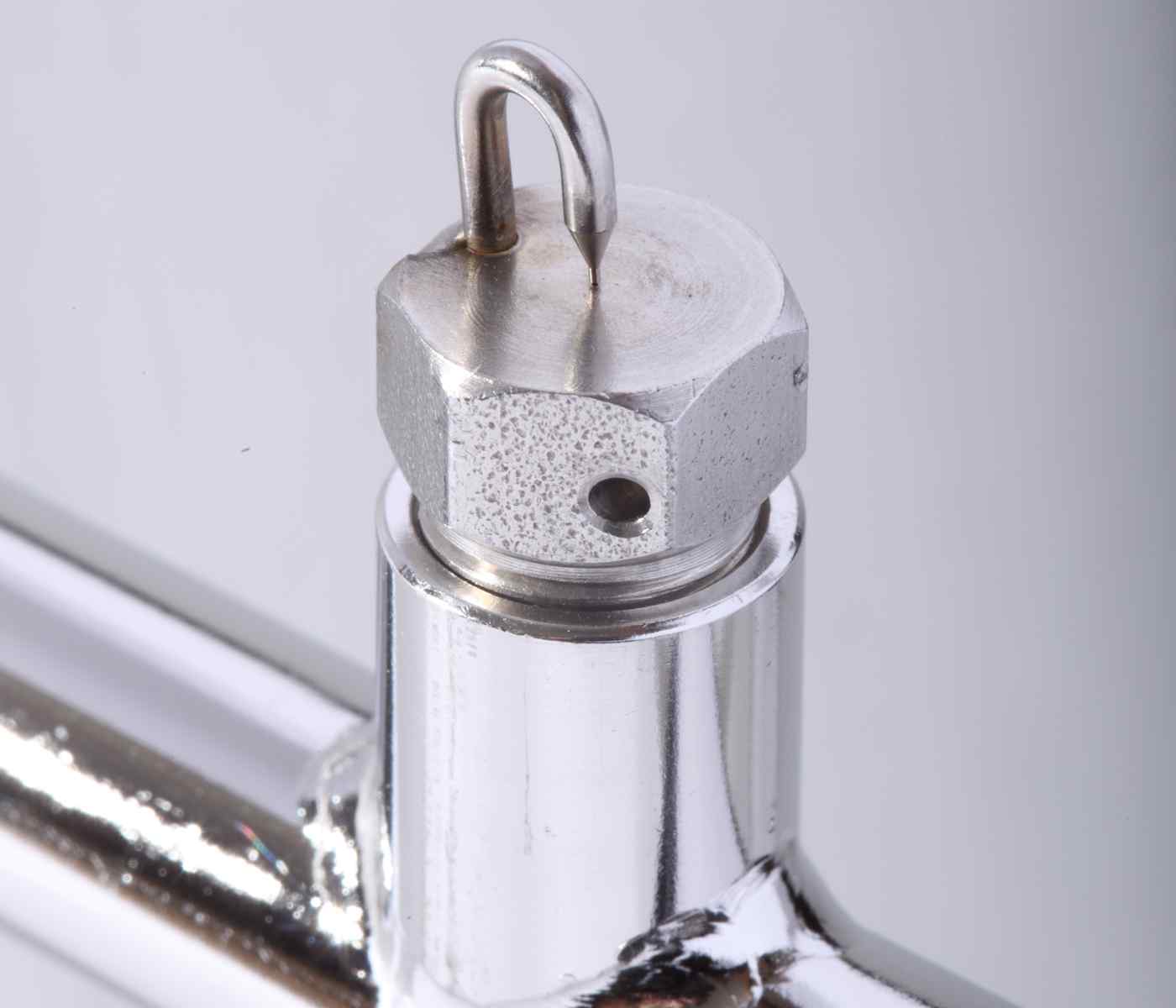

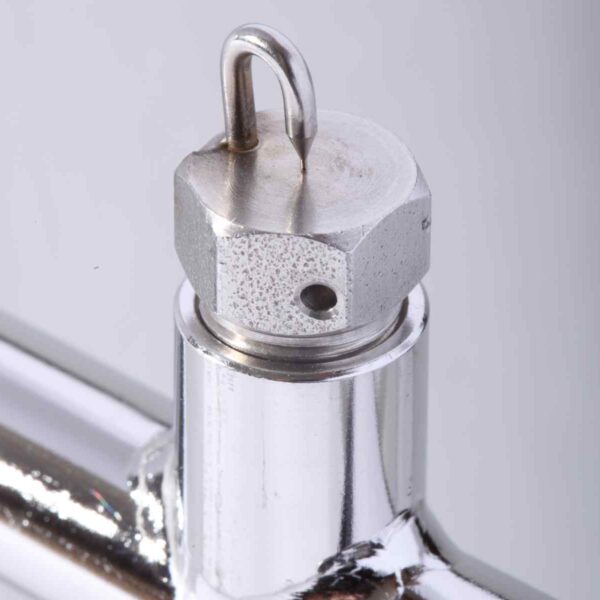

Close-up of a metal valve featuring a hexagonal top and a small hook, polished chrome finish with visible threading and an opening.

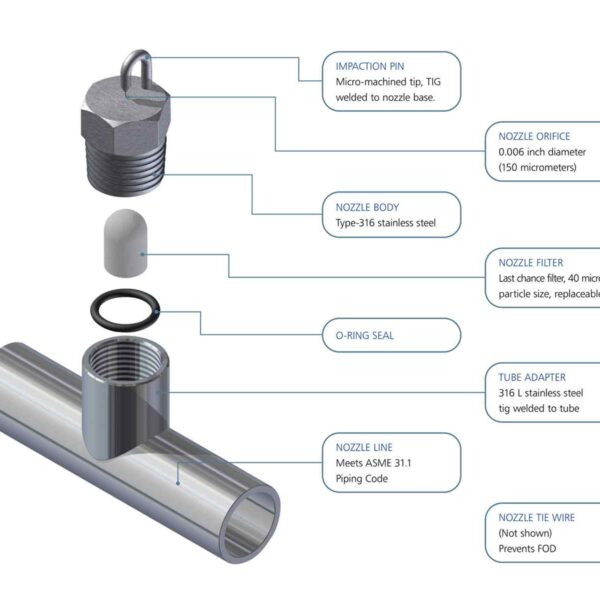

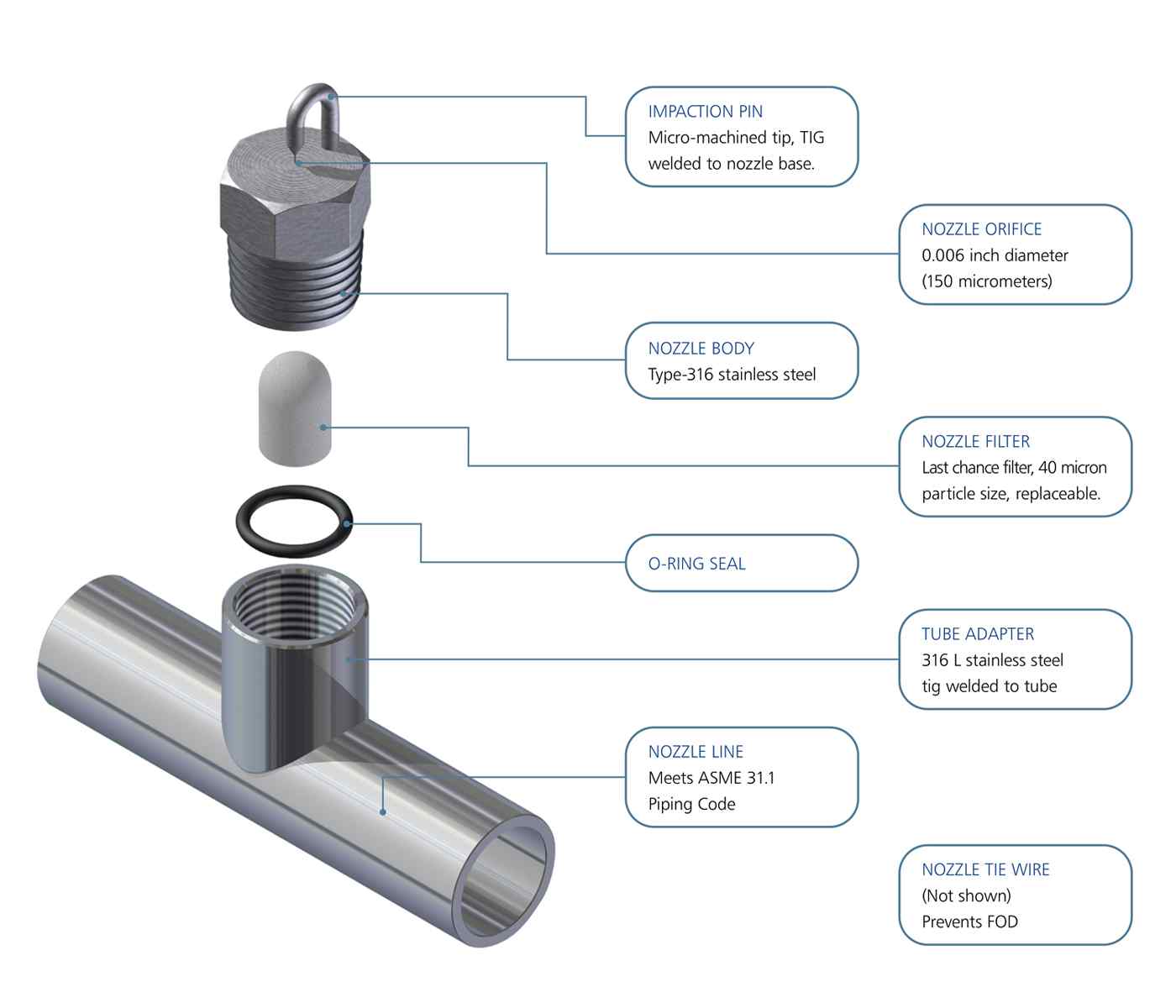

Diagram of a stainless steel nozzle assembly with labeled components: impact pin, orifice, body, filter, O-ring seal, and tube adapter.

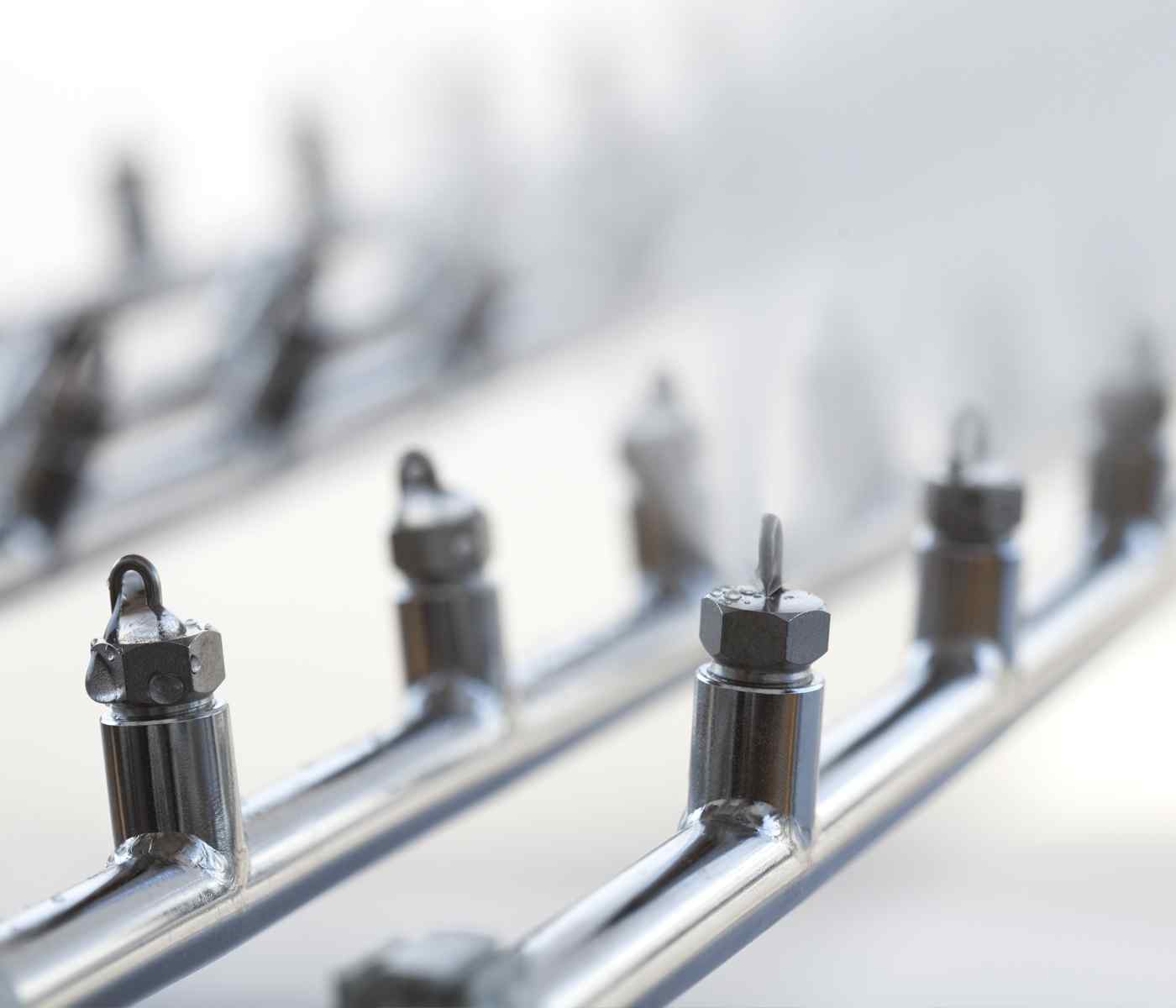

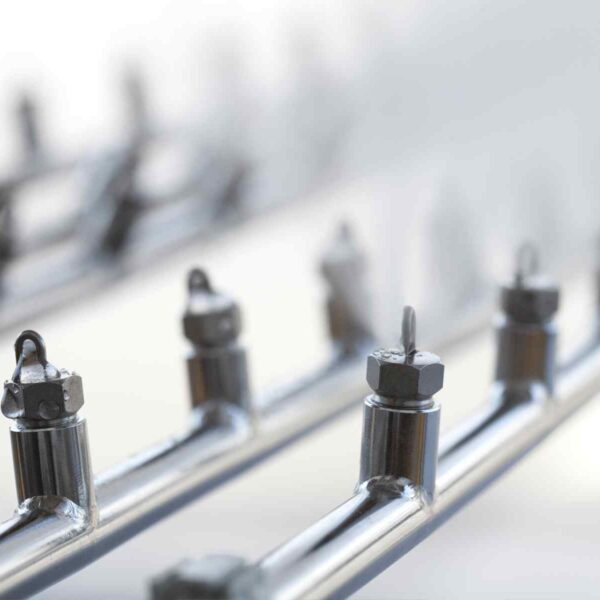

Close-up of metallic piping with threaded nuts and hooks, arranged in a linear perspective against a softly blurred background.

MeeFog Nozzle

The MeeFog Impaction Pin Nozzle

Overview:

Each MeeFog impaction-pin nozzle is made from high-grade stainless steel. The standard nozzle features a 0.006 inch (150 micrometer) diameter orifice which produces billions of ultra-fine droplets per second. At an operating pressure of 2000 psi, the average droplet size is below 10 micrometers, or one tenth the diameter of a single strand of human hair. The resulting fog provides fast evaporation and amazing special effects.

Features:

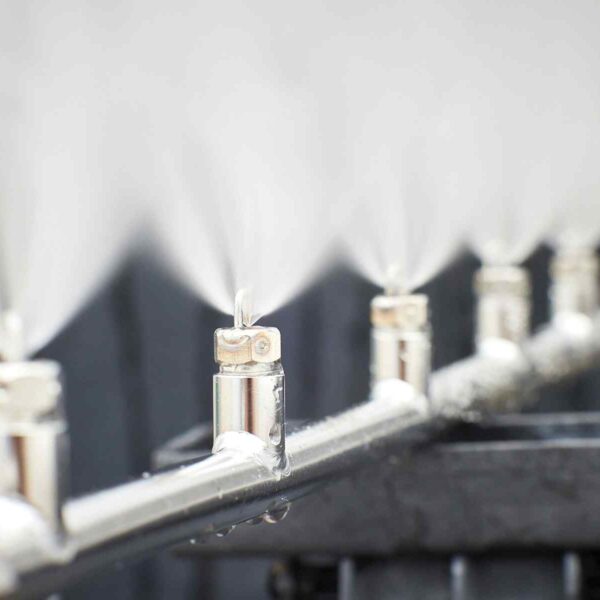

High-grade, precision-machined type 316 stainless steel construction.
Super smooth orifice, low-pressure drop, 98% efficiency.
Cylinder type filter with radius end for efficient nozzle operation.
1/8″ NPT tapered fitting.
O-Ring seal at the base of the nozzle.

Request A Quote

Nozzle Brochure

Features

Specifications

Other

Features

Small droplets have a larger surface to volume ratio compared to larger droplets. This allows them to evaporate much more rapidly than larger droplets.

Droplets are spheres. Thinking about them only in terms of diameter can be misleading.

3.4 times more mass
33% less surface per unit volume
2 times faster fall rate

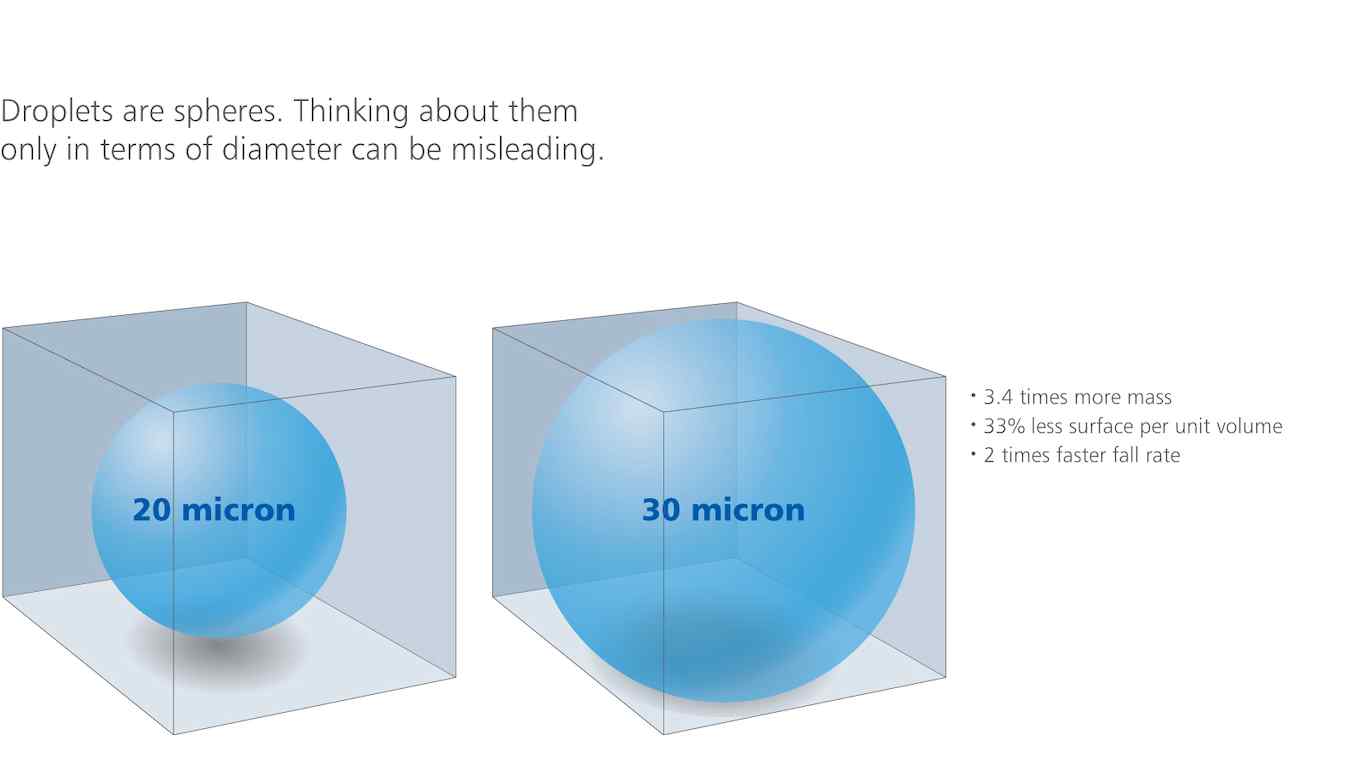

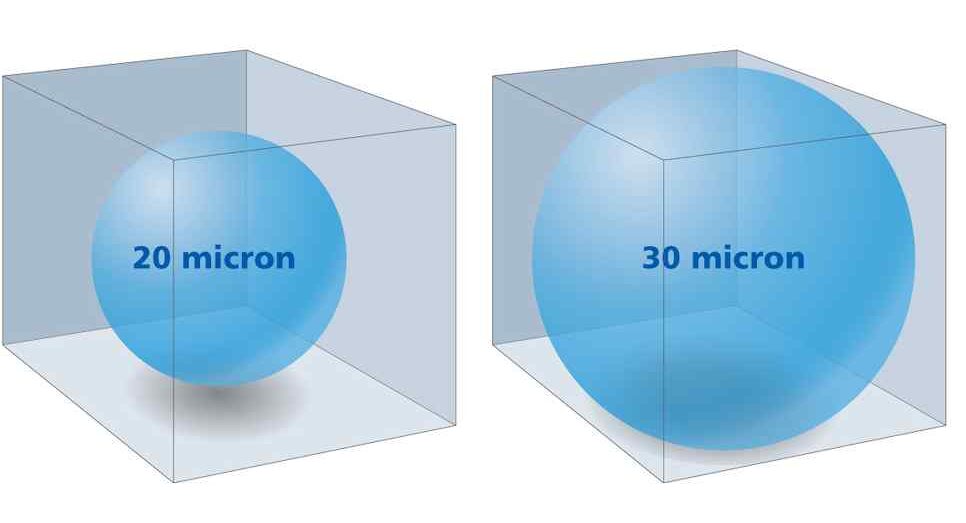

Illustration comparing two spherical droplets (20 microns and 30 microns) with details on mass, surface area, and fall rate differences.

Specifications

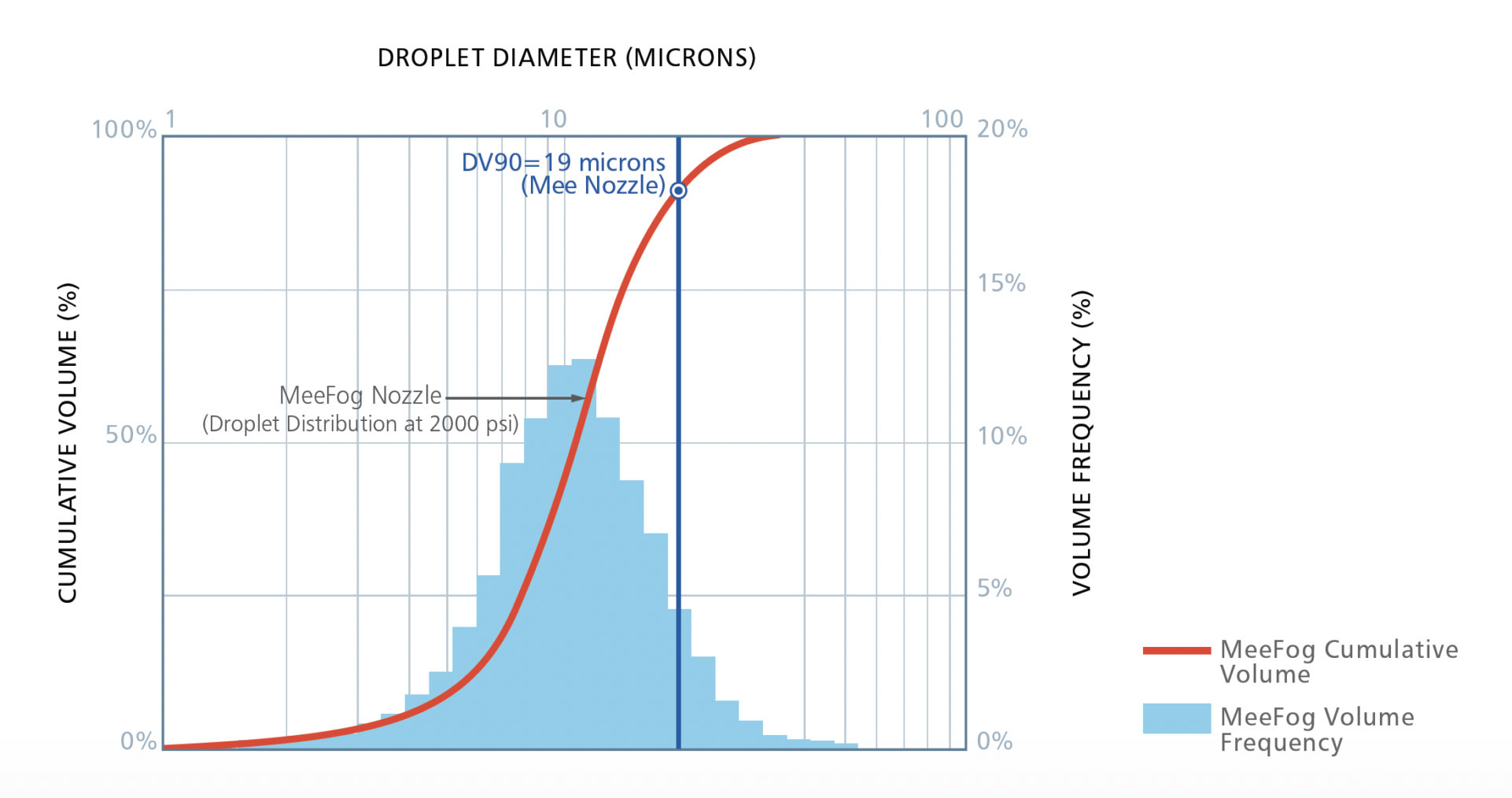

Fog Droplet Distribution Chart

FOG DROPLET DISTRIBUTION

The MeeFog Impaction Pin Nozzles evaporate water much faster than competitor’s nozzle.

Other

Nozzle Flow Rates (GPM)

Nozzle	1000 PSI	2000 PSI	3000 PSI
Mee IP-05	0.022	0.031	0.03
Mee IP-06	0.032	0.045	0.055
Mee IP-08	0.057	0.08	0.098
