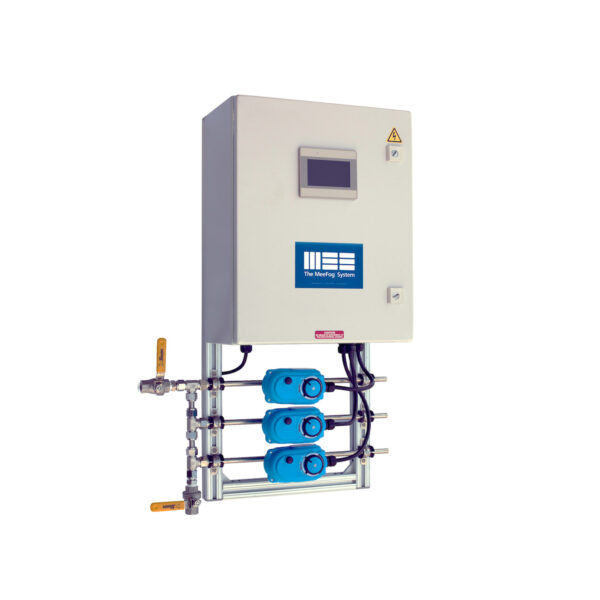

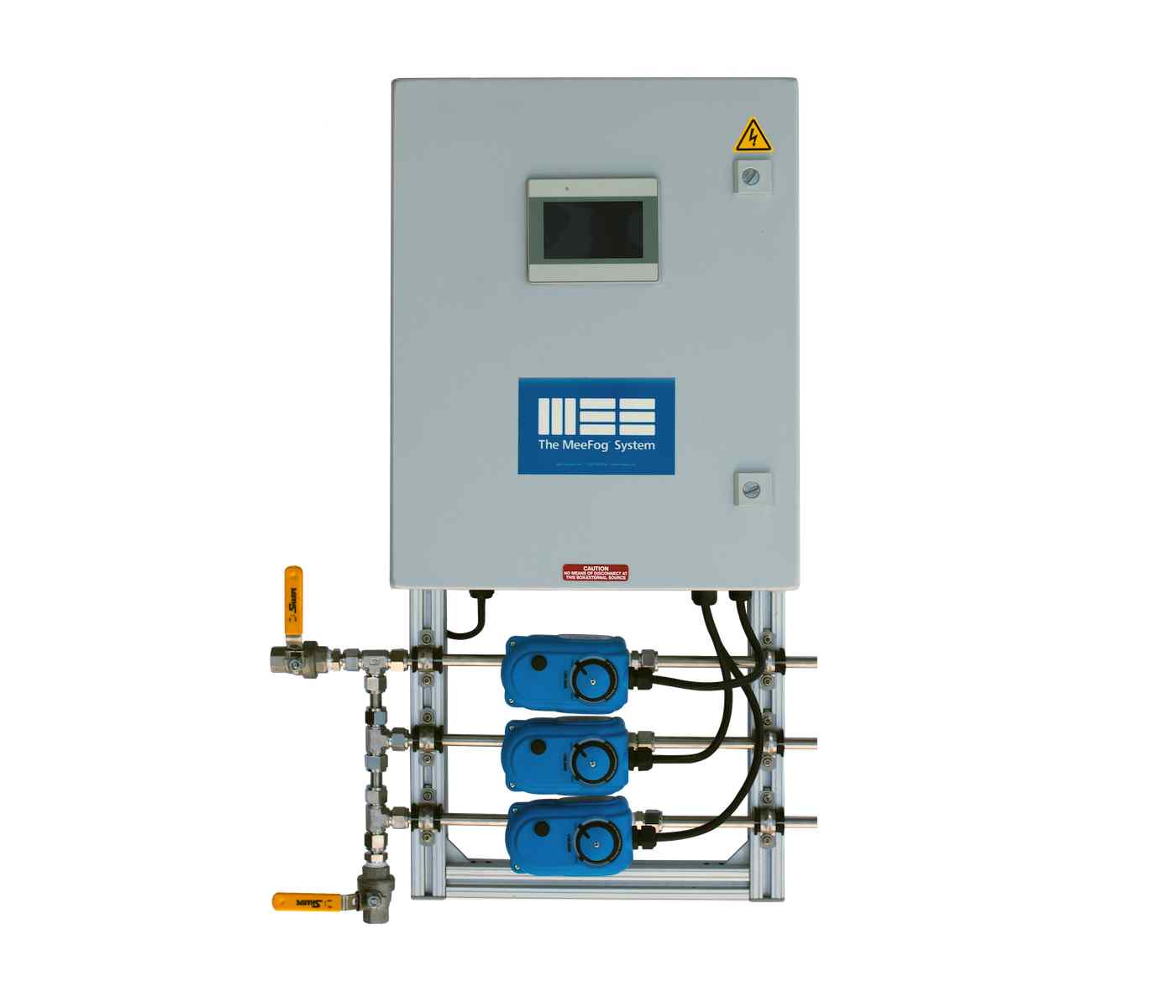

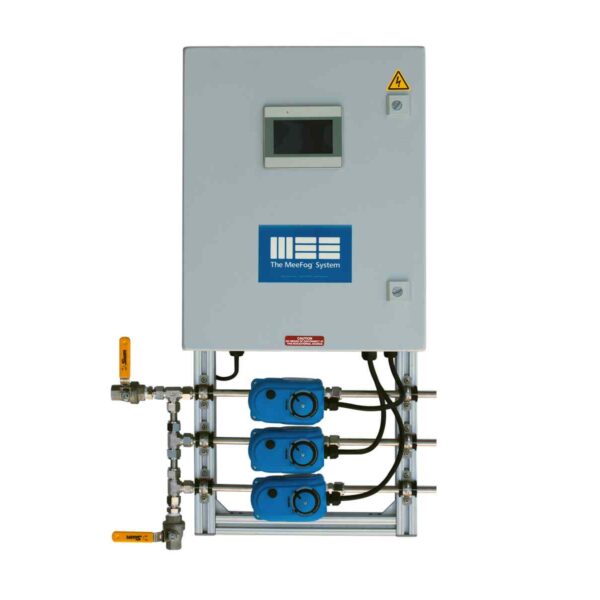

MeeFog Staging Valve Panel

Humidity Control Center for Mee-3 Rack

MeeFog Staging Valve Panel

Humidity Control Center for Mee-3 Rack

Overview:

  • Up to five motorized valves, slow acting for quiet operation and low water hammer.
  • Completely assembled and factory tested, no on-site wiring or plumbing of valve components.
  • On board PLC accepts humidity demand signal, and accomplishes valve staging.

What it Does:

The Staging Valve Panel stages the fog manifolds that are installed inside the air handler to control the humidity output. The Staging Valve Panel works in tandem with the MeeFog pump skid, and will send the pump skid a ‘run’ signal any time a humidity demand signal is present.

Features
Specifications
Features
  • Up to 31 stages of fog output control.
  • Motorized ball valves are slow closing to eliminate water hammer.
  • Color touch-screen interface.
  • Automatic sanitary flush cycle when inactive for a 24 hour period.
  • PLC controls delays to prevent overcycling.
  • Humidity demand signal (4-20mA or 0-10 VDC).
  • BACnet option available.
Specifications
