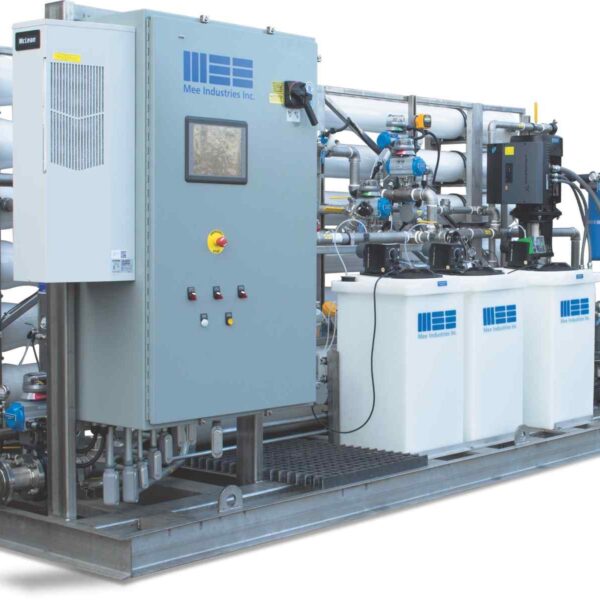

Features:
- Touch screen HMI control interface &PLC controller with frequency controlled variable speed pump/motors.
- Automated membrane flushing.
- No chemical regeneration required for continuous electrodeionization (CEDI).
- Integrated RO/EDI skid designs.
What it Does:
Removing minerals and dissolved solids from supply water will achieve the highest purity of water meeting OEM specifications for water injection. Mee Industries provides the ultimate in project execution. From design to supply, installation and after sales service there is a single supplier—a single point of contact.
Features
Specifications
Other
Features
- Dual pass RO system.
- Integral skid mounted EDI polishing unit.
- Allen Bradley Compact Logix PLC controls.
- 12” Touch Screen HMI Display with 4–20 mA transmitters.
- UL electrical panel.
- Variable frequency controlled high pressure pump/motor.
- Skid mounted chemical dosing units.
- Clean In place units.
- Tank level input for Auto/Start Stop.
- Automatic high TDS bypass to reject line.
- Manual motor starters.
Specifications

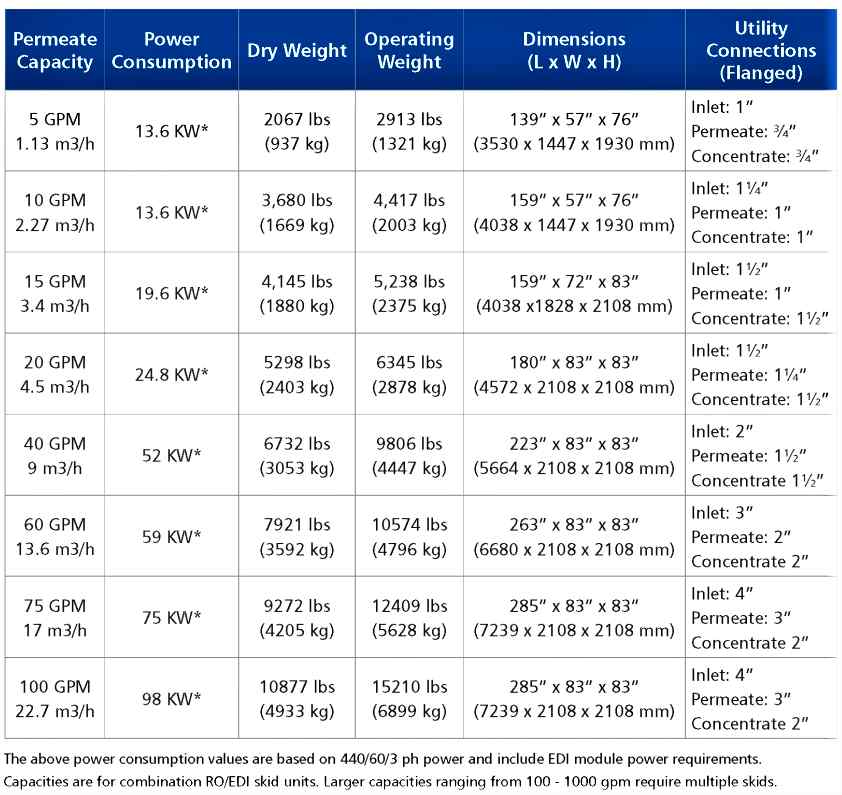

| Permeate Capacity | Power Consumption | Dry Weight | Operating Weight | Dimensions (L x W x H) | Utility Connections (Flanged) |
|---|---|---|---|---|---|
| 5 GPM 1.13 m3/h | 13.6 KW* | 2067 lbs (937 kg) | 2913 lbs (1321 kg) | 139" x 57" × 76" (3530 x 1447 x 1930 mm) | Inlet: 1" Permeate: ¾" Concentrate: ¾" |
| 10 GPM 2.27 m3/h | 13.6 KW* | 3,680 lbs (1669 kg) | 4,417 Ibs (2003 kg) | 159" x 57" x 76" (4038 x 1447 x 1930 mm) | Inlet: 1 ¼" Permeate: 1" Concentrate: 1 |
| 15 GPM 3.4 m3/h | 19.6 KW* | 4,145 lbs (1880 kg) | 5,238 Ibs (2375 kg) | 159" x 72" x 83" (4038 x1828 x 2108 mm) | Inlet: 1½" Permeate: 1" Concentrate: 1½" |
| 20 GPM 4.5 m3/h | 24.8 KW* | 5298 lbs (2403 kg) | 6345 lbs (2878 kg) | 180" x 83" x 83" (4572 x 2108 x 2108 mm) | Inlet: 1½/" Permeate: 1¼" Concentrate: 1½" |
| 40 GPM 9 m3/h | 52 KW* | 6732 lbs (3053 kg) | 9806 lbs (4447 kg) | 223" x 83" x 83" (5664 x 2108 x 2108 mm) | Inlet: 2" Permeate: 1½" Concentrate: 1½" |
| 60 GPM 13.6 m3/h | 59 KW* | 7921 lbs (3592 kg) | 10574 lbs (4796 kg) | 263" x 83" x 83" (6680 x 2108 x 2108 mm) | Inlet: 3" Permeate: 2" Concentrate 2" |
| 75 GPM 17 m3/h | 75 KW* | 9272 lbs (4205 kg) | 12409 lbs (5628 kg) | 285" x 83" x 83" (7239 x 2108 x 2108 mm) | Inlet: 4" Permeate: 3" Concentrate 2" |
| 100 GPM 22.7 m3/h 98 | 98 KW* | 10877 Ibs (4933 kg) | 15210 Ibs (6899 kg) | 285" x 83" x 83" (7239 x 2108 x 2108 mm) | Inlet: 4" Permeate: 3" Concentrate 2" |
The above power consumption values are based on 440/60/3 ph power and include EDI module power requirements.
Capacities are for combination RO/EDI skid units. Larger capacities ranging from 100 – 1000 gpm require multiple skids.
Other
Additional Features/Accessories
- Pre-Treatment Media Filtration Systems
- Pre/Post Treatment Chemical Dosing Units
- Raw Water Booster Pump Units
- Demin Water Transfer Pumps & Storage Tanks
- Virtual Network Control Remote Monitoring System
EDI Modules
- Manufacturer: Ionpure, GE E-Cell
- Models: LXM, VNX
- Up to 16 Mega-Ohm Product Resistivity
- 90% Recovery
Material of Construction
- High Pressure Piping: 316 SS: Sch 10
- Low Pressure Piping: PVC Sch 80 (Opt.316 SS)
- Structural Skid: Coated Carbon Steel
- RO Housing: FRP 450 PSI (31 Bar) rated
- EDI Module: FRP 100 PSI (6.9 Bar) rated
- Enclosures: NEMA 4
- Chemical Tanks: High Density PE
Performance Parameters
- < 0.5 us/cm Permeate Water Quality
- < 3000 us/cm Typical Feed Water TDS
- 15˚C Design Temperature
- Operating Temperature of 4–35˚C
- 350 PSI (24.1 Bar) Operating Pressure
RO Membrane Elements
- Manufacturer: Hydranautics, Dow or Toray
- Type: TFC Spiral Wound
- Typical Design Flux: 14 gfd
- Membrane Rejection 99.5 – 99.6%
