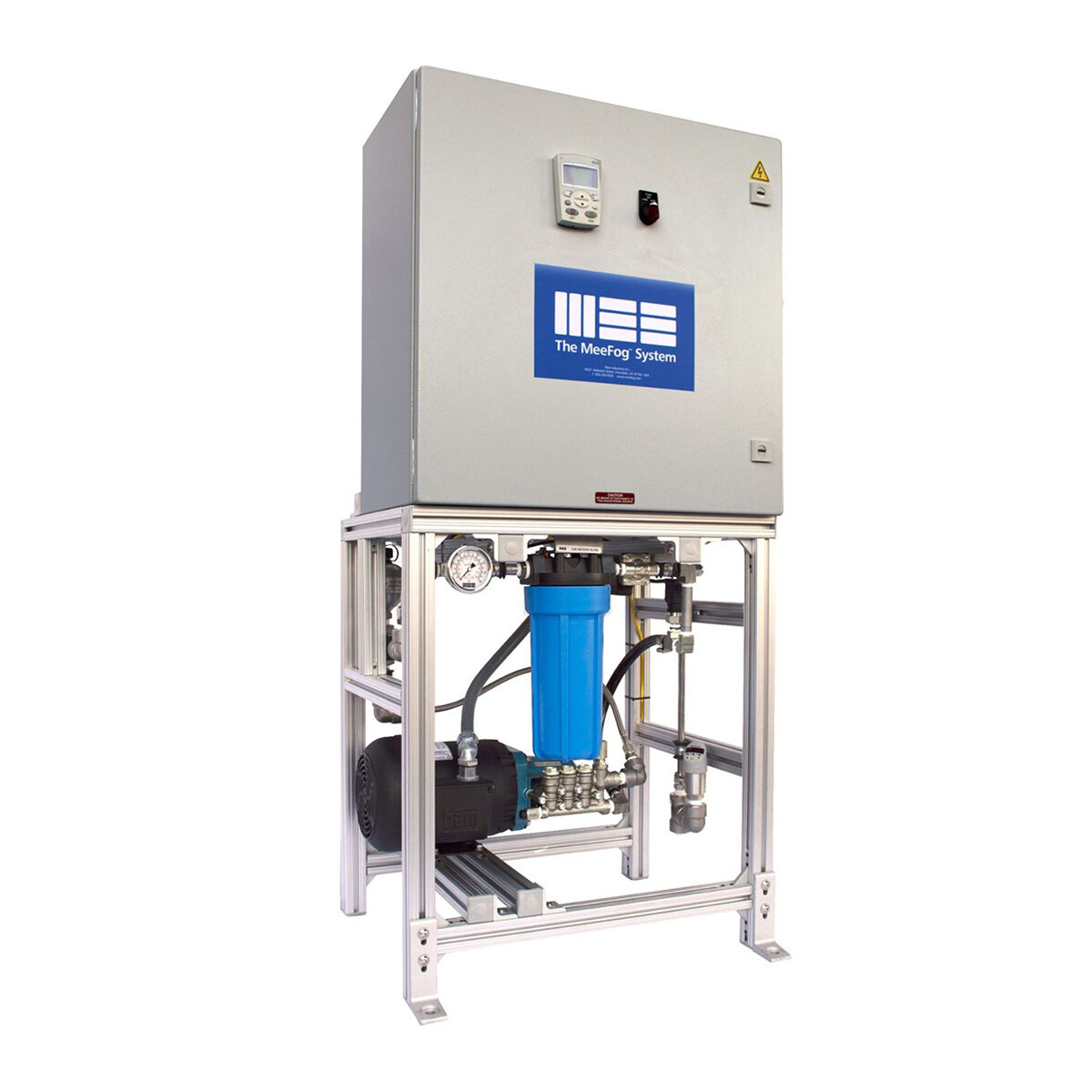

MeeFog Industrial-Quality Pump Rack: Model Mee-3
For AHU Applications with Optional PLC
MeeFog Industrial-Quality Pump Rack: Model Mee-3
For AHU Applications with Optional PLC
Overview:
- Anodized aluminum frame ensures long, corrosion free service.
- VFD with HMI or status relay via BACnet.
- SS pump Compatible with RO water.
What it Does:
The Model Mee-3 is an economical, full-featured, industrial-quality, high-pressure fog pump unit. A variable frequency drive reduces pump wear and noise level, and allows operation of zones with few nozzles, without overheating the pump.
Features
Specifications
Other
Features
- Direct drive pumps with high-efficiency motors.
- VFD with panel-mounted controller maintains pressure when zone valves open and close.
- Pressure transducer includes digital display.
- Anodized aluminum frame ensures long, corrosion free service.
- Low inlet-pressure and high discharge-pressure protection.
- UL certified (508A enclosed industrial control panels).

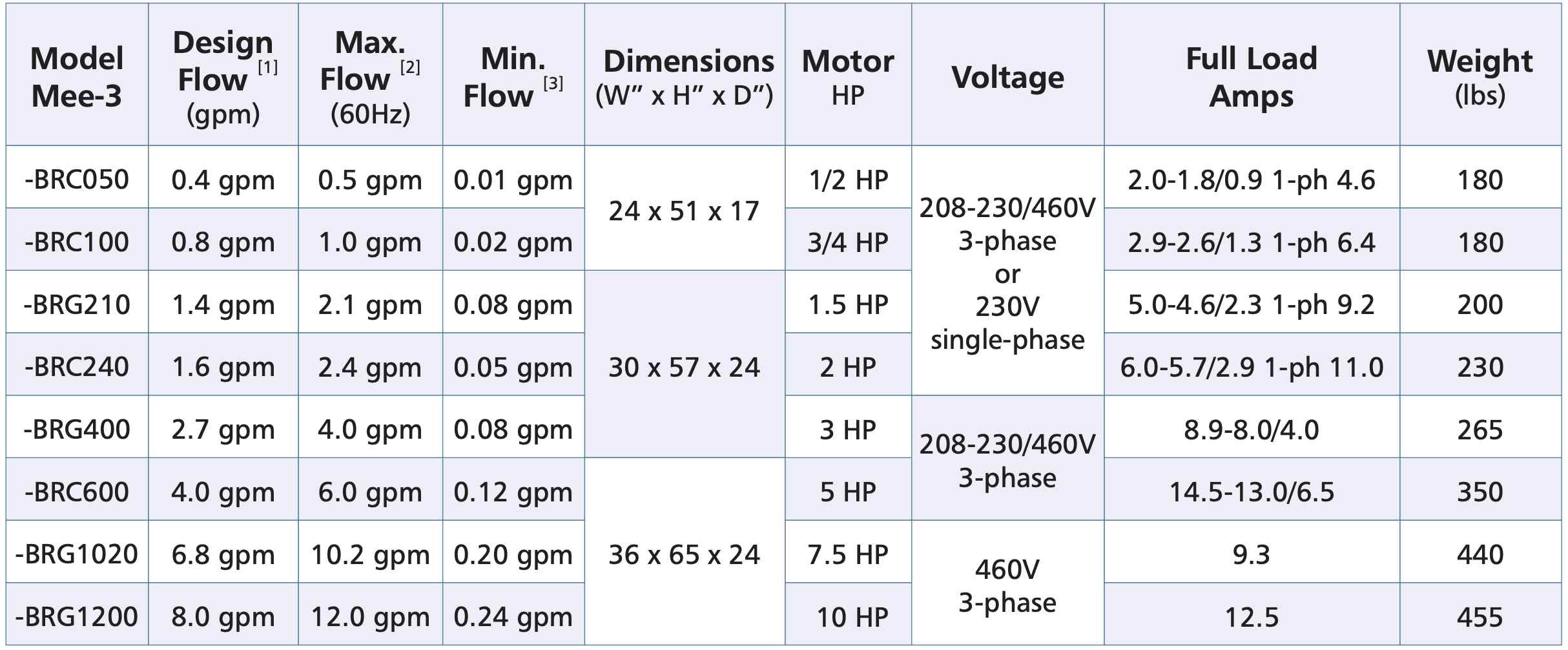

Specifications
Model | Design Flow (gpm) | Max. Flow (60Hz) | Min. Flow | Dimensions (W" x H" x D") | Motor HP | Voltage | Full Load Amps | Weight (Ibs) |
---|---|---|---|---|---|---|---|---|
-BRC050 | 0.4 gpm | 0.5 gpm | 0.01 gpm | 24 × 51 x 17 | 1/2 HP | 208-230/460V 3-Phase or 230V Single-Phase | 2.0-1.8/0.9 1-ph 4.6 | 180 |
-BRC100 | 0.8 gpm | 1.0 gpm | 0.02 gpm | 24 × 51 x 17 | 3/4 HP | 208-230/460V 3-Phase or 230V Single-Phase | 2.9-2.6/1.3 1-ph 6.4 | 180 |
-BRG210 | 1.4 gpm | 2.1 gpm | 0.08 gpm | 30 x57 x 24 | 1.5 HP | 208-230/460V 3-Phase or 230V Single-Phase | 5.0-4.6/2.3 1-ph 9.2 | 200 |
-BRC240 | 1.6 gpm | 2.4 gpm | 0.05 gpm | 30 x57 x 24 | 2 HP | 208-230/460V 3-Phase or 230V Single-Phase | 6.0-5.7/2.9 1-ph 11.0 | 230 |
-BRG400 | 2.7 gpm | 4.0 gpm | 0.08 gpm | 30 x57 x 24 | 3 HP | 208-230/460V 3-Phase | 8.9-8.0/4.0 | 265 |
-BRC600 | 4.0 gpm | 6.0 gpm | 0.12 gpm | 36 × 65 x 24 | 5 HP | 208-230/460V 3-Phase | 14.5-13.0/6.5 | 350 |
-BRG1020 | 6.8 gpm | 10.2 gpm | 0.20 gpm | 36 × 65 x 24 | 7.5 HP | 460 V 3-Phase | 9.3 | 440 |
-BRG1200 | 8.0 gpm | 12.0 gpm | 0.24 gpm | 36 × 65 x 24 | 10 HP | 460 V 3-Phase | 12.5 | 455 |
