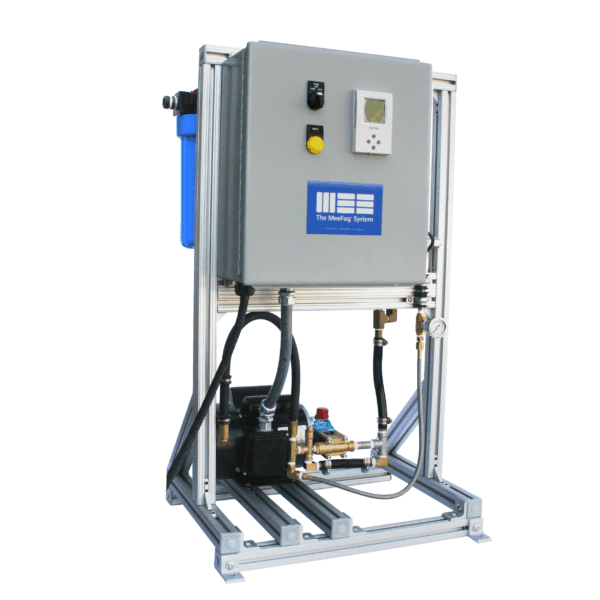

MeeFog Low Flow Pump Rack: Model Mini-Mee
For Low Cost Applications
A Fog Flow Pump Designed for Low-Cost Applications
You don’t need an industrial-grade Fog flow Pump for small-scale humidification and cooling jobs. The Mini-Mee is a compact, full-featured high-pressure fogging pump built for smaller applications like greenhouses, cold storage rooms, or localized cooling zones, delivering the same ultra-fine, billions-of-droplets-per-second fog MeeFog is known for.
Despite its size, it doesn’t cut corners. Its UL-certified 508 control panel, sub-micron water filter, and dry-run protection keep it running quietly and reliably, while the compact, open frame makes maintenance easy.
Benefits:
- Compact design
- Quiet operation
- Open design for easy access
- Low-cost fog pump for small applications
- Direct drive 1000 psi pump.
- Inlet pressure switch to protect pump from running dry.
- Sub-micron water filter to ensure nozzles stay clean.
- UL certified enclosed 508 industrial control panel.
- Compact frame mounted system.
- Optional humidity controller with remote sensor.
| Model | Flow Rate | Square Feet Min/Max | Low Flow Nozzle Capacity (SJ-3 Nozzle) | Standard Nozzle Capacity (SJ-7 Nozzle) | High Flow Nozzle Capacity (IP-16 Nozzle) | Dimensions (W" x H" x D") | Electrical | Weight (Ibs) |
|---|---|---|---|---|---|---|---|---|
| Model MM - 13 | .13 GPM | 468 SqFt - 2,340 SqFt | 20 | 7 | 4 | 22 × 36 × 16 | 120 VAC, 1/2 HP | 100 |
| Model MM - 25 | .25 GPM | 900 SqFt - 4,500 SqFt | 40 | 17 | 7 | 22 × 36 × 16 | 120 VAC, 1/2 HP | 100 |
| Model MM - 50 | .5 GPM | 1,800 SqFt - 9,000 SqFt | 83 | 36 | 15 | 22 × 36 × 16 | 120 VAC, 1/2 HP | 100 |
FAQs
1. What is the Mini-Mee best suited for?
The Mini-Mee is a compact Fog flow Pump designed for smaller humidification and cooling applications, like greenhouses, cold storage areas, or single-zone cooling setups. It delivers industrial-quality performance without the size or cost of a larger pump rack.
2. How is the Mini-Mee different from a standard MeeFog pump rack?
It’s a scaled-down, low-flow version built for smaller square footage. You still get a true high-pressure fogging pump running at 1000 psi, just sized for applications that don’t need a large-capacity system.
3. Which Mini-Mee model should I choose?
It depends on the square footage you need to cover and the nozzle type you’re running. The MM-13, MM-25, and MM-50 models cover ranges from roughly 468 to 9,000 square feet, so the right fit comes down to your space and flow requirements.
4. Does the pump require much maintenance?
The high-pressure fogging pump includes a sub-micron water filter that keeps nozzles clean and an inlet pressure switch that protects the pump from running dry. Its open, compact frame also makes routine servicing straightforward.
5. Is the Mini-Mee safe for continuous operation?
Yes, it’s built as a full-featured industrial pump, not a scaled-down consumer unit. The UL-certified enclosed 508 control panel and direct-drive design ensure reliable, ongoing use.
6. Can I add humidity control to the system?
Yes, an optional humidity controller with a remote sensor is available, allowing the pump to adjust output automatically based on on-site conditions.
